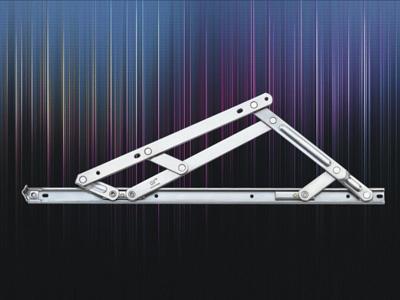

1. Manufactured from high grade Austenitic stainless steel. Engineering/plastic slider for strength.
2. Durability and smooth operation.
3. Be suitable for large top-hung application. It provides adequate friction all opening angles.
4. Double slider with additional linkage bar for 18", 20" and 24" will support a top-hung window vent up to maximum 120kg.
5. Channel Width: 23mm; Stack Height: 16.5mm.
6. Material: 304, 430, 316.
7. OEM accepted.
8. Package: 1 pair in 1 plastic bag, 25 pairs in 1 carton, some cartons (about 1 ton) in 1 plywood pallet, 11 pallets in 1x20' FCL container or 23 pallets in 1x40' FCL container.
9. Production Period: 20-45 days.
10. For Top-hung Window Application Data:
Item & Size |
Max Heigh (mm) |
Max Width (mm) |
Max Weight (Kgs) |
Open Angle (Degree) |
FHDZ200-12"T |
800 |
1200 |
50 |
30/35 |
FHDZ200-14"T |
1000 |
1200 |
65 |
30/35 |
FHDZ200-16"T |
1200 |
1200 |
82 |
25/30 |
FHDZ200-18"ST |
1400 |
1500 |
100 |
25/30 |
FHDZ200-20"ST |
1600 |
1600 |
108 |
20/25 |
FHDZ200-22"ST |
1700 |
1800 |
112 |
25 |
FHDZ200-24"ST |
1800 |
1800 |
120 |
20 |
FHDZ200-28"ST |
2000 |
2000 |
130 |
20 |
